Faser-Optikbeendigungs-Kasten pp.-Plastikip65 FTTH

FTTH drop cable joint kits protection box

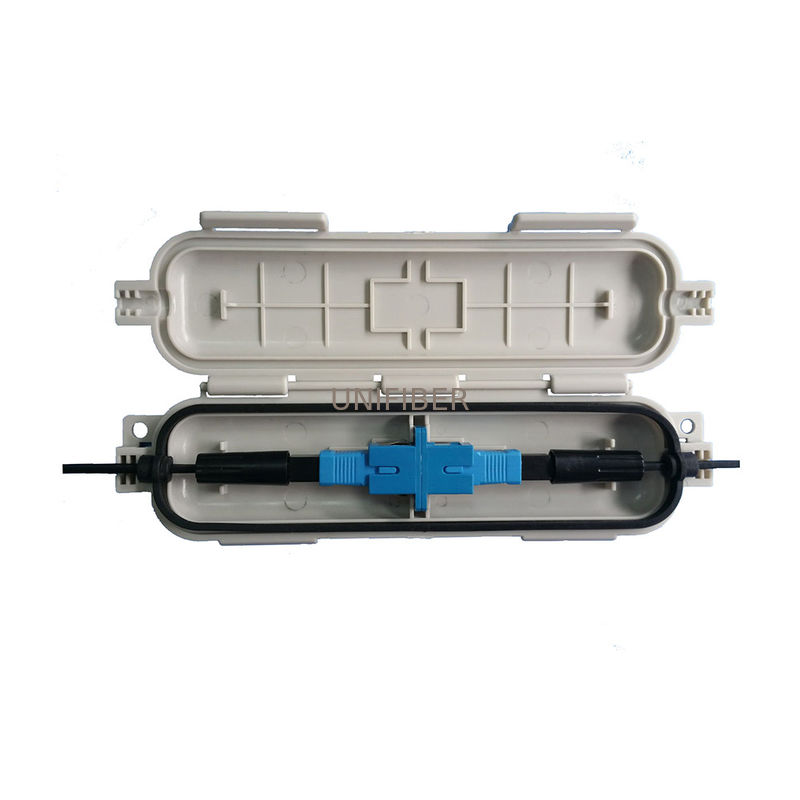

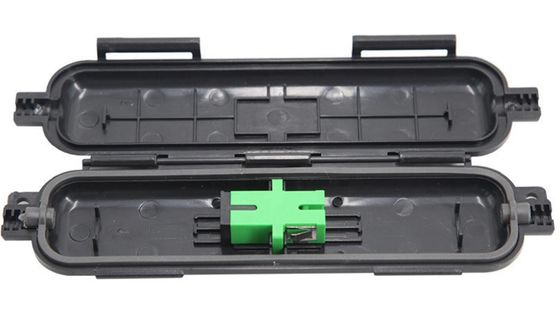

This new type butterfly fiber optic cable protective box is a case to put in a butterfly cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.

   Suitable for 2.0*3.0mm FTTH drop fiber cable and normal fiber cable.
   Max 2 fibers connection (LC Connector).
   Small size, easy installation.
   Waterproof IP65, dust proof.
   Indoor outdoor used.
   Size: 160*47.9*16mm

   2 mounting holes distance 150mm
   Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.
