| Product: | Pullable/Pushable Fiber Patch Cord | Connector: | MTC SC APC |
|---|---|---|---|
| Cable Diameter: | 3.0mm Round or 2.0*5.0 Flat Drops | Jacket Material: | LSZH |
| Jacket Color: | Black or White | Fiber Type: | G657A2 |
| Length: | Customized |

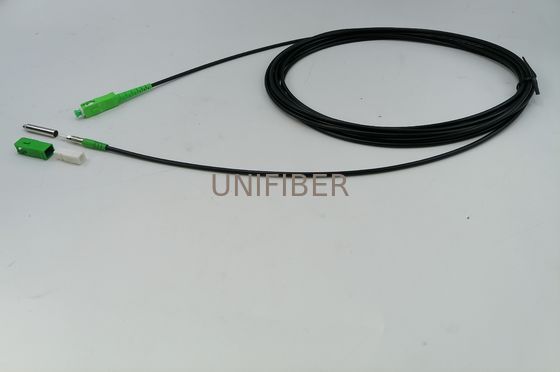

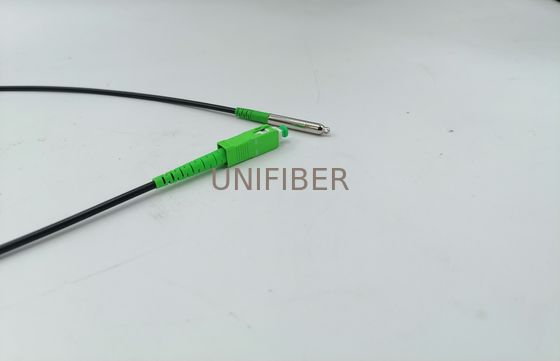

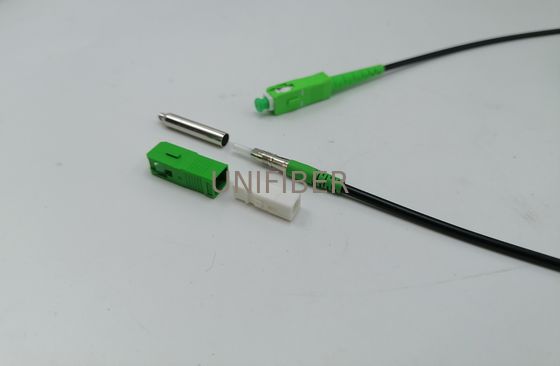

Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.The pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall. This Pushable assembly can be successfully pushed through small holes and microduct . Hand push distances vary according to bend frequency and duct quality; The rugged round drop cable with the pushable pre-terminated connector, reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.
Features
Application
Specification
FTTH / FTTX – Indoor & outdoor drops
Single and multi-dwelling units
FTTP and campus networks
Rural broadband
DAS / FTTA
| Fiber Mode | Single mode |
| Fiber Count | 1 |
| Polish or Ferrule Interface Type | APC |
| Connector A | MTC SC APC |
| Connector B | SC APC |
| Cable Lengths | customized |
| Jacket Materials | Indoor/outdoor LSZH Material |
| Outer Jacket Color | Black or White |
| Outer Jacket Diameter(mm) | 3.0mm or 2.0*5.0 Flat Drops |
| Fiber Type | G657A2 |
| Inner Cable Diameter | 0.9mm |
| Inner cable Color | Blue |
| Storage Temperature | -20°C to 60°C |
| Installation Temperature | -5°C to 50°C |
| Operating Temperature | -20°C to 60°C |
| Crush(N/100mm) | 1000 |
| Maximum Tensile Load (Long term) | 150N |
| Minimum Tensile Load (Short term) | 400N |
