1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25

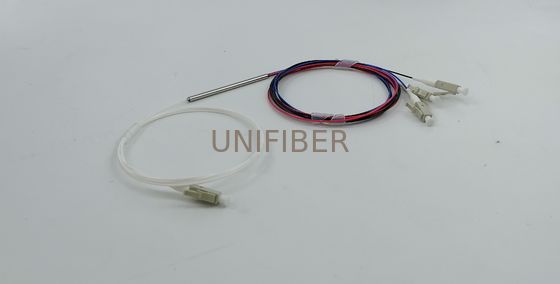

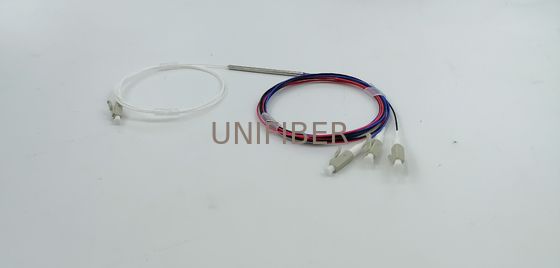

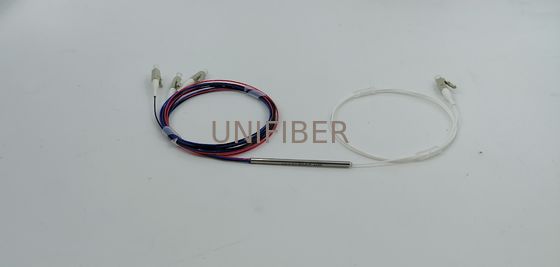

Großes Bild : 1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25

Produktdetails:

Place of Origin:	CHINA
Markenname:	Unifiber or OEM
Zertifizierung:	ROHS
Model Number:	1x3 MM Coupler

Zahlung und Versand AGB:

Minimum Order Quantity:	10
Preis:	Verhandlungsfähig
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Kontakt

Ausführliche Produkt-Beschreibung

Product:	1x3 MM Optical Coupler	Wavelength:	850nm
Fiber Type:	Multimode OM3	Connector:	LC/PC
Configuration:	1x3	Splitting ratio:	50/25/25

1xN(NxN) Monolithic Multi-Mode Couplers comply with Telcordia 1209/1221and RoHS. All our FBT Couplers have to pass 48 hours of high (85℃) and low (-45℃) temperature circulation before delivery. Multimode fiber coupling features low insertion loss, high stability and reliability and compact size.

Features

Low Excess Loss

Single Fusion Design

Uniform Power Splitting

Compact Size

Application

Optical communication systems

Local Area Networks

Testing instruments

Specification

Parameter	Unit	Specification
Operating Wavelength	nm	850
Type		1x3
Coupling Ratio	%	50/25/25
Insertion Loss	dB	≤3.8/7.0/7.0
Directivity	dB	≥40
Dimensions	mm	OD 3.0 x 54
Fiber		OM3 50/125
Fiber Length	m	1.0±0.1
Pigtail Type	um	900(White@IN；White@OUT1;Red@OUT2;Blue@OUT3)
Connector	/	LC/UPC
Operating Temperature	℃	-20~85
Storage Temperature	℃	-40~85
