1310nm MEMS VOA Single Mode Variable Optical Attenuator Bright Type 5V

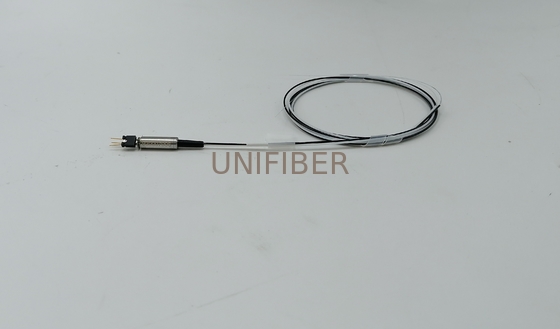

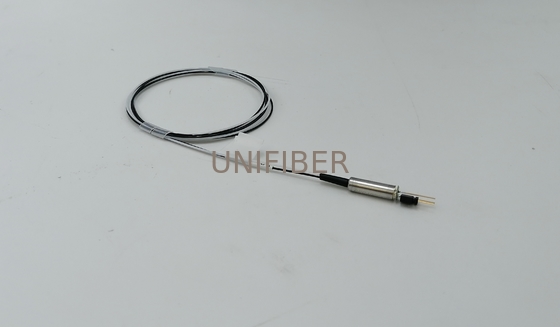

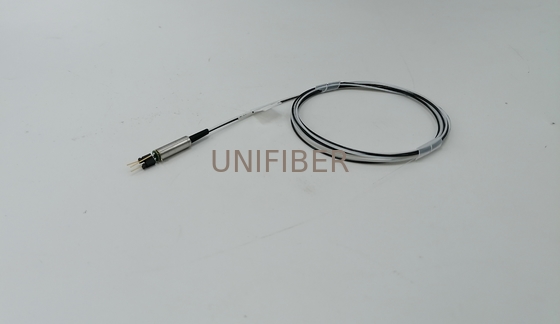

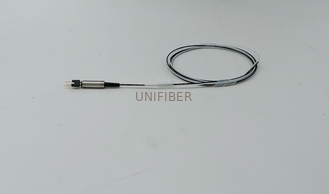

Großes Bild : 1310nm MEMS VOA Single Mode Variable Optical Attenuator Bright Type 5V

Produktdetails:

Place of Origin:	CHINA
Markenname:	Unifiber or OEM
Zertifizierung:	ROHS
Model Number:	1310nm MEMS VOA

Zahlung und Versand AGB:

Minimum Order Quantity:	10
Preis:	Verhandlungsfähig
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Kontakt

Ausführliche Produkt-Beschreibung

Product:	SM MEMS VOA	Wavelength:	1310nm
Attenuation Type:	Bright Type	Voltage:	5V
Power handling:	500 MW	Application:	Channel On/off Switching

Variable Optical Attenuator (VOA) based on microelectromechanical systems (MEMS) is an important component to achieve power regulation in all-optical networks. it can realize comprehensive remote control of all-optical networks.

Features

High stability

High reliability

Low insertion loss

Rapid response

Compact Size

Application

Power control and equalization in multi-channel System

Gain-tilt control in EDFAS

Receiver protection

Channel on/off switching

Specification

Parameter	Specification	Unit	Note
Wavelength Range	1064	nm
	1310	nm	O Band
	1530~1570	nm	C band
	1570~1610	nm	L band
Attenuation Type	Bright or Dark	-
Attenuation Range	≥30	dB	For Single Mode
Attenuation Range	≥20	dB	For Multi Mode
Insertion Loss	≤0.7	dB
Attenuation Resolution	Continuous	-
Wavelength Dependent Loss	≤0.3	dB	@<0 dB Att.
Polarization Dependent Loss	≤0.1	dB	@<0 dB Att.
Temperature Dependent Loss	≤0.7	dB	@<0 dB Att. compare with RT
Return loss	≥45	dB	For Single Mode
Respnse Time	≤2	ms	10-90%optical power
Optical Power Handing	500	mW
Driving Voltage	6.5 or 15	V
Power Consumption	≤2	mW
Operation Temperature	0~70	℃
Storage Temperature	-40~85	℃
