24/12/8 Ports High-Density SM LC Fiber Optical Adapter

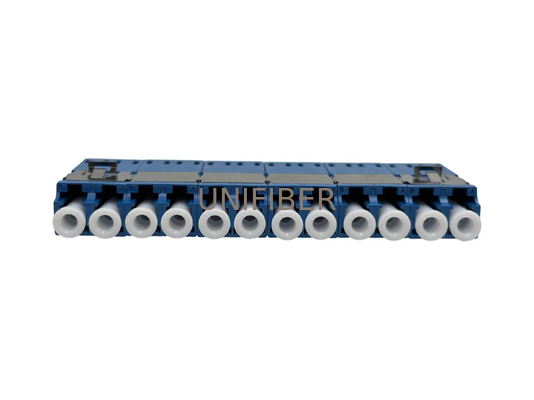

Großes Bild : 24/12/8 Ports High-Density SM LC Fiber Optical Adapter

Produktdetails:

Herkunftsort:	China
Markenname:	UNIFIBER-OEM
Zertifizierung:	ROHS
Modellnummer:	Optischer LC-Faseradapter mit hoher Dichte

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stück
Preis:	Verhandlungsfähig
Verpackung Informationen:	Blasen-Kasten
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	10000 Stück/Tag

Kontakt

Ausführliche Produkt-Beschreibung

Nein von den Häfen:	24/12/8	Steckertyp:	LC
Material:	ABS+PC	Polnischer Typ:	UPC
Farbe:	Blau	Anwendung:	Rechenzentrum
Hervorheben:	24 port SM LC fiber adapter , high-density fiber optic adapter , LC fiber adapter with warranty

24/12/8 Ports High-Density SM LC Fiber Optical Adapter

Fiber optic adapters, also known as couplers, are compact devices designed to terminate or connect fiber optic cables and connectors between two fiber optic lines. These high-density SM LC fiber optical adapters are specifically engineered for use in high-density patch panels, cassettes, and ODF (Optical Distribution Frame) applications.

Key Features

Low insertion loss for optimal signal transmission
High return loss performance
Easy installation and deployment
Cost-effective solution
Reliable and durable construction
Low environmental sensitivity
User-friendly operation

Applications

Telecommunication Networks
Local Area Networks (LANs)
Communication Systems

Technical Specifications

Parameter	SM PC	SM UPC	SM APC	MM PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
Alternating Loss	≤0.2dB
Repeatability	≤0.2dB
Durability	Change of 1000 interpolation times is less than 0.2dB
Working Temperature	-40°C to 85°C
Storage Temperature	-40°C to 85°C
